Signal Tower Light

We are authorized distributor of Patlite Make Indutrial Automation Products, in indore (M.P). A Patlite Signal Tower Light is a multi-tier visual signaling device, essential in automation systems and manufacturing environments. Signal tower lights are also used for machine monitoring, process control, and safety alerting across various sectors, including manufacturing, automation, logistics, and robotics.

  • Red: Failure, emergency stop, or urgent maintenance required.
  • Yellow/Amber: Warning, such as high temperature/pressure or low material levels.
  • Green: Normal operation, machine running properly.
  • Blue: External assistance requested, such as a material shortage or operator help.
  • White: User-defined or specific productivity monitoring, such as cycle completion

LR Series of Signal Tower Light

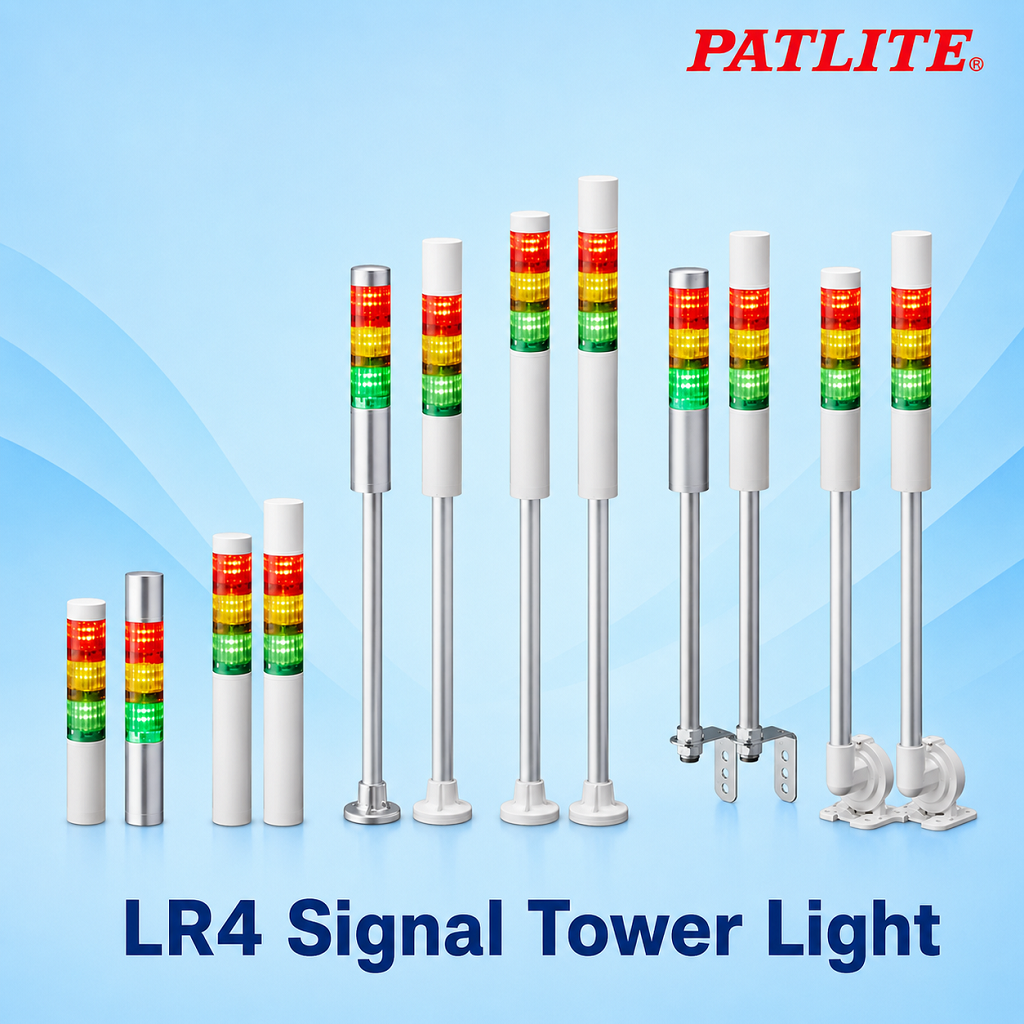

1. LR4 Series (Φ40mm LED Signal Tower Lights)

Compact Φ40mm signal tower with ultra-bright LEDs, modular “Twist and Lock” units, and durable IP65 housing. Offers DC/AC support, clear lens options, and multi-tone buzzer.

Application :

  1. ideal for equipment status alerts in harsh environments.
  2. Industrial automation and control panels
  3. Manufacturing and assembly machines
  4. Packaging and material handling systems
Features
  1. A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
  2. A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
  3. Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
  4. Available in DC24V and AC100-240V (Off-white only).
  5. Available in Off-white and Silver bodies.
More info

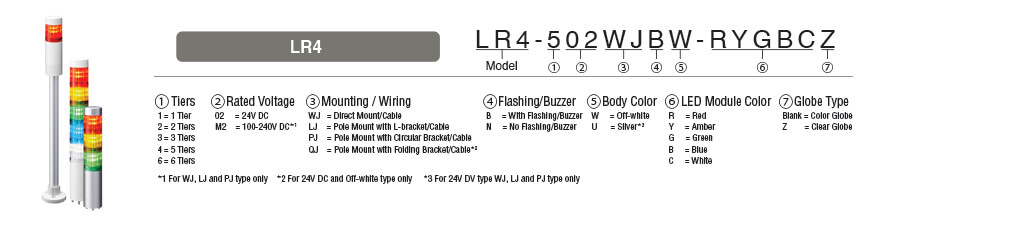

Model Code

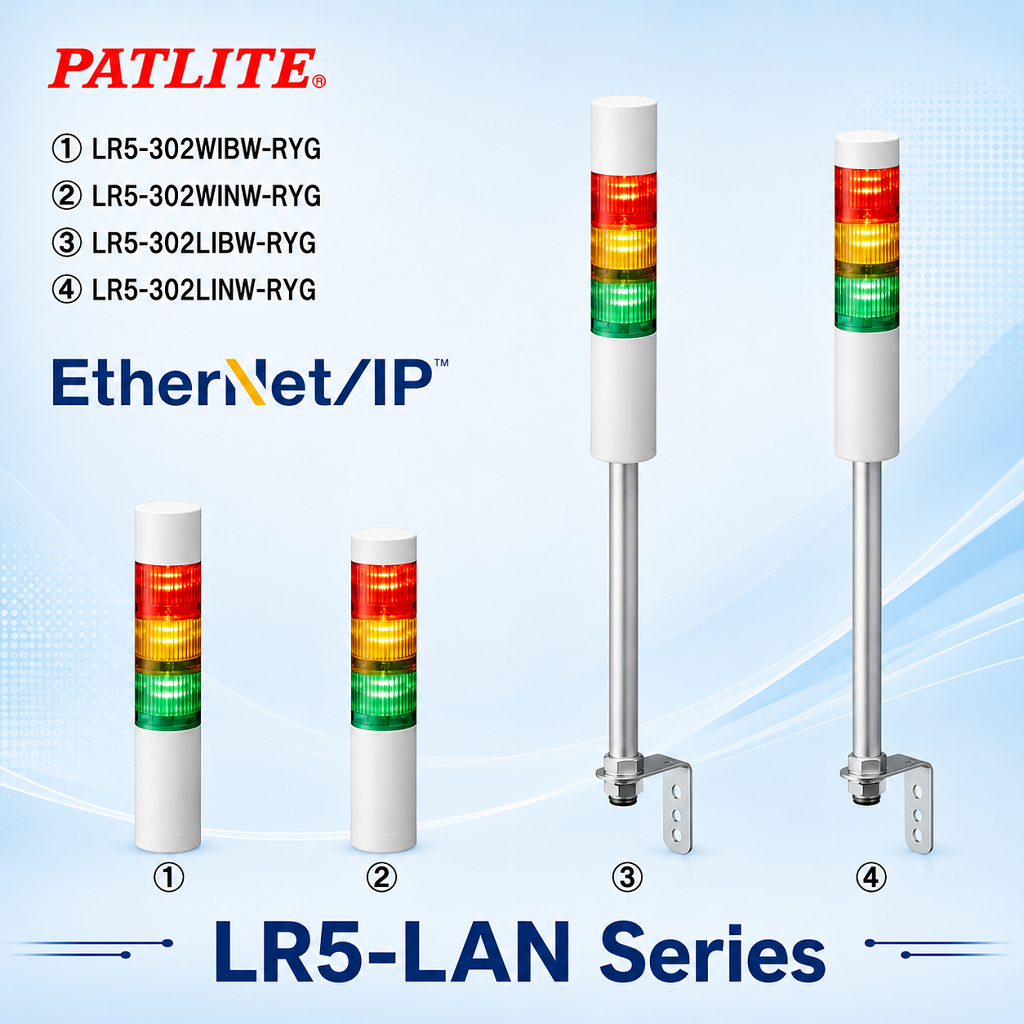

2. LR5-LAN Series

The LR5 Series LED Signal Tower Lights are designed to provide clear, reliable visual and audible signaling for indoor industrial automation environments.

Application :

  1. ideal for equipment status alerts in harsh environments.
  2. Industrial automation and control panels
  3. Manufacturing and assembly machines
  4. Packaging and material handling systems
Features
  1. Direct LAN Control: Eliminates the need for discrete PLC output contact boards or digital I/O modules.
  2. Multiple Protocols: Fully supports HTTP(S), Modbus/TCP, SOCKET (PNS) commands, and EtherNet/IP models.
  3. Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
  4. Available in DC24V and AC100-240V (Off-white only).
  5. Available in Off-white and Silver bodies.
More info

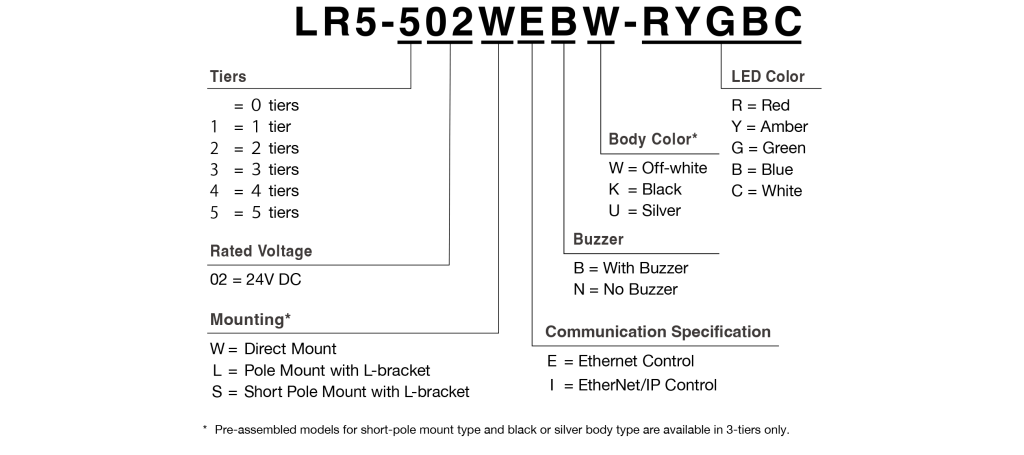

Model Code

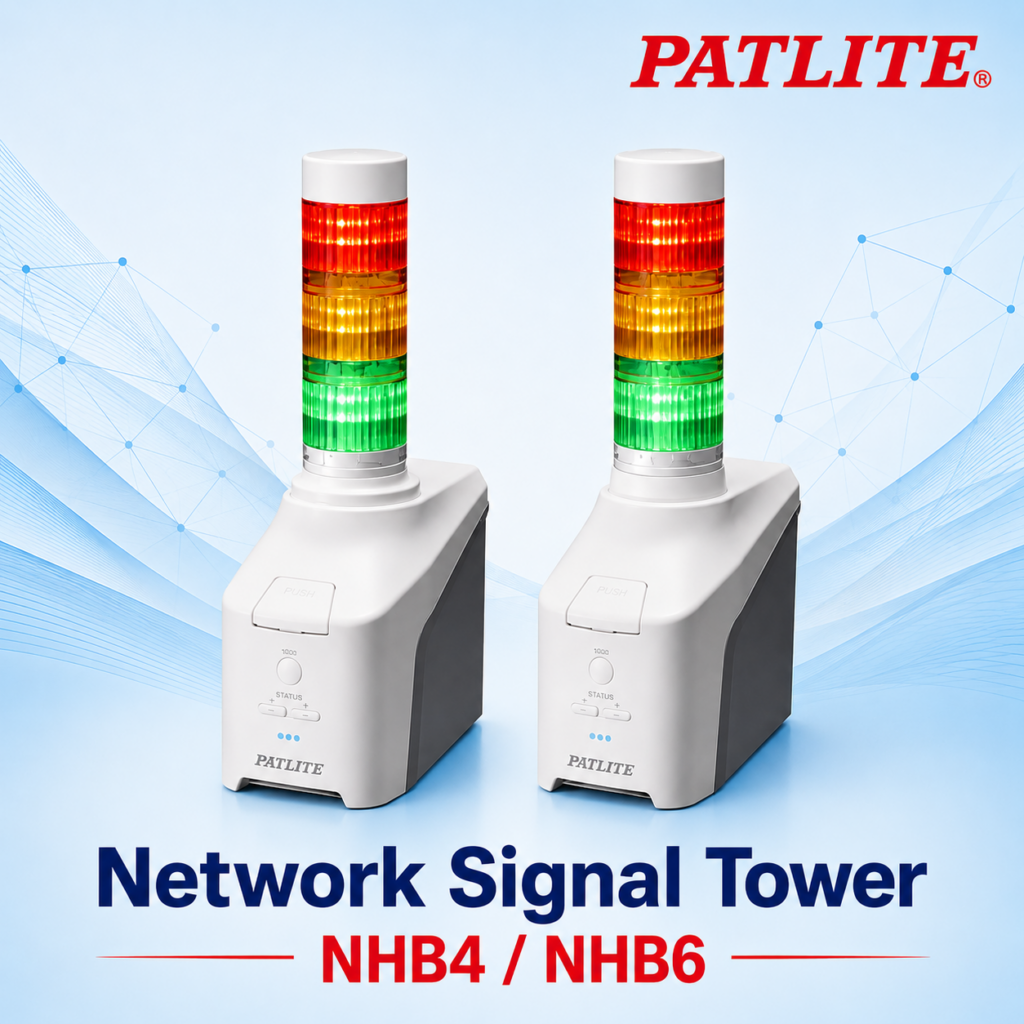

3. Network Signal Tower NHB4 / NHB6

The NHB4/NHB6 is an Ethernet-enabled network signal tower available in 40mm (NHB4) and 60mm (NHB6) diameters.

Application :

  1. light and audible alarms to report real-time system events,
  2. device errors.
  3. network abnormalities across industrial automation.
  4. IT infrastructure,
  5. cloud monitoring applications.
Features
  1. Supports various network protocols.
    Immediately reports events and abnormalities of network devices and systems with light and alarm.
  2. Supports secure protocols such as HTTPS, SNMP v3, SSH. Secure communication with peace of mind.
  3. Equipped with an SNMP device monitoring function in addition to dead/alive monitoring by PING monitoring
More info

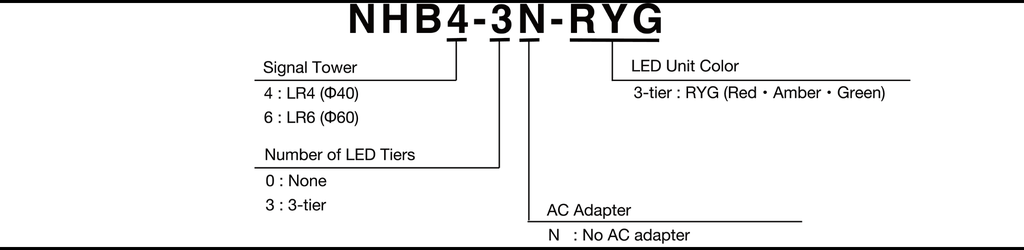

Model Code

Understanding Network Signal Towers.
