Alfa Laval Hygienic Tube and Fittings – Authorized Distributor in Madhya Pradesh

Element Engineers & Consultants is an industrial products supplier based in Indore, Madhya Pradesh, providing Alfa Laval tubes and hygienic stainless steel fittings for industrial process applications. We support customers in selecting suitable products for hygienic processing systems used in the food and beverage, dairy, pharmaceutical, and home and personal care industries.

Alfa Laval Hygienic Tubes

Alfa Laval hygienic tubes are designed for applications where cleanliness, product quality, and reliable fluid handling are important. Suitable tube selection helps support hygienic process requirements and the efficient transfer of liquids in industrial production systems.

Depending on the application and product specifications, hygienic tubes can be selected for use in dairy processing, food production, beverage manufacturing, pharmaceutical processing, and other hygienic industries.

Key benefits and selection considerations:

Hygienic design for suitable process applications.
Stainless steel construction options, depending on product specifications.
Selection according to required tube dimensions, material grade, and process conditions.
Compatibility with suitable hygienic fittings and process equipment.
Support for cleanable process systems when correctly specified and installed.

Alfa Laval Hygienic Fittings

Alfa Laval hygienic fittings are used to connect tubes, pipes, valves, pumps, and other equipment within hygienic process installations. The correct fitting helps create a suitable process connection while supporting the cleanliness and operational requirements of the application.

Product selection depends on the required connection type, dimensions, material, pressure and temperature conditions, and applicable hygienic standards.

Fitting solutions may include:

Hygienic tube connections and fittings.
Clamps and compatible connection components.
Elbows and other tube connection components, where available.
Reducers and adapters for suitable process configurations.
Gaskets and sealing components compatible with the selected connection.

HYGIENIC TUBES & FITTINGS

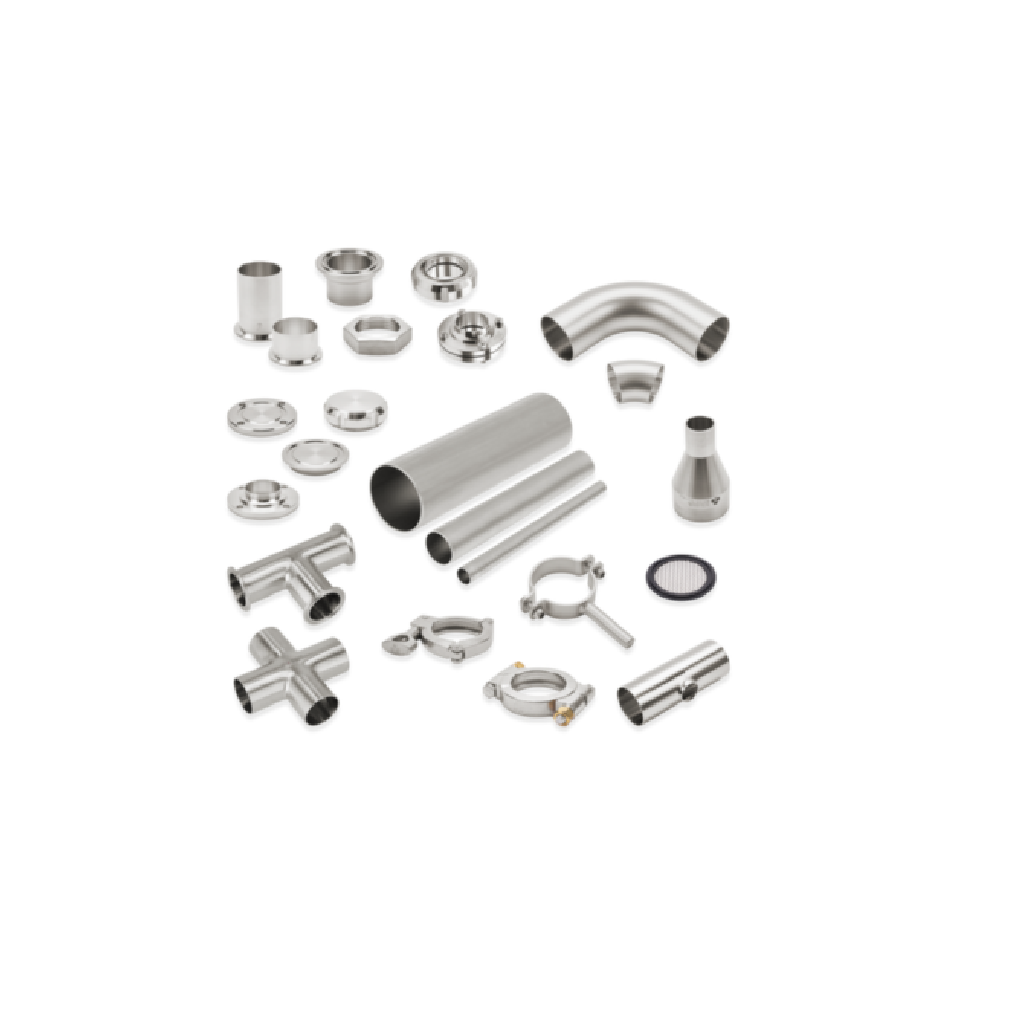

Alfa Laval Hygienic BS 4825 tubes and fittings provide high cleanliness standards when product integrity, quality and safety are critical to your processing systems. Smooth, crevice-free and corrosion-resistant, these British Standard 4825-compliant connections have internal surface finishes with a roughness average (Ra) between ≤ 0.8 – 1.6 μm.

Alfa Laval is your complete source for specialized fittings and tubing required in food, dairy, beverage, personal care,
biotechnology and pharmaceutical process applications. Smooth, crevice-free interiors and secure, self-aligning joints are characteristic for Alfa Laval Fittings. This product range provides a wide range of fittings with internal surface finishes that have a roughness average (Ra) of < 0.8 – 1.6 μ. Fittings in the hygienic range comply with DIN 11850 dimension standard.

Precision-engineered, These corrosion-resistant Hygienic fittings DIN EN 10357-A, formerly DIN 11850, are cold-formed from a single piece of AISI 304L or 316L stainless steel with tight tolerances and Ra <0.8-1.6 μm internal surface finishes. They easily integrate with compatible components. A Ra ≤ 0.8 μm internal surface finish provides the exceptional hygiene level required for applications across the food and beverage industries.

Alfa Laval Hygienic Fittings ISO EN 10357-D keep your hygienic processing lines safe, efficient and cost-effective. These SMS-, IDF-, ISO 2037- and EN 10374-D-compliant fittings come in a broad range of ID/OD sizes, making connecting new or retrofitting existing piping systems easy. Surface finishes with a roughness average (Ra) of ≤ 0.8 – 1.6 μm safeguard hygiene in applications where minimizing microbial contamination risks is critical.

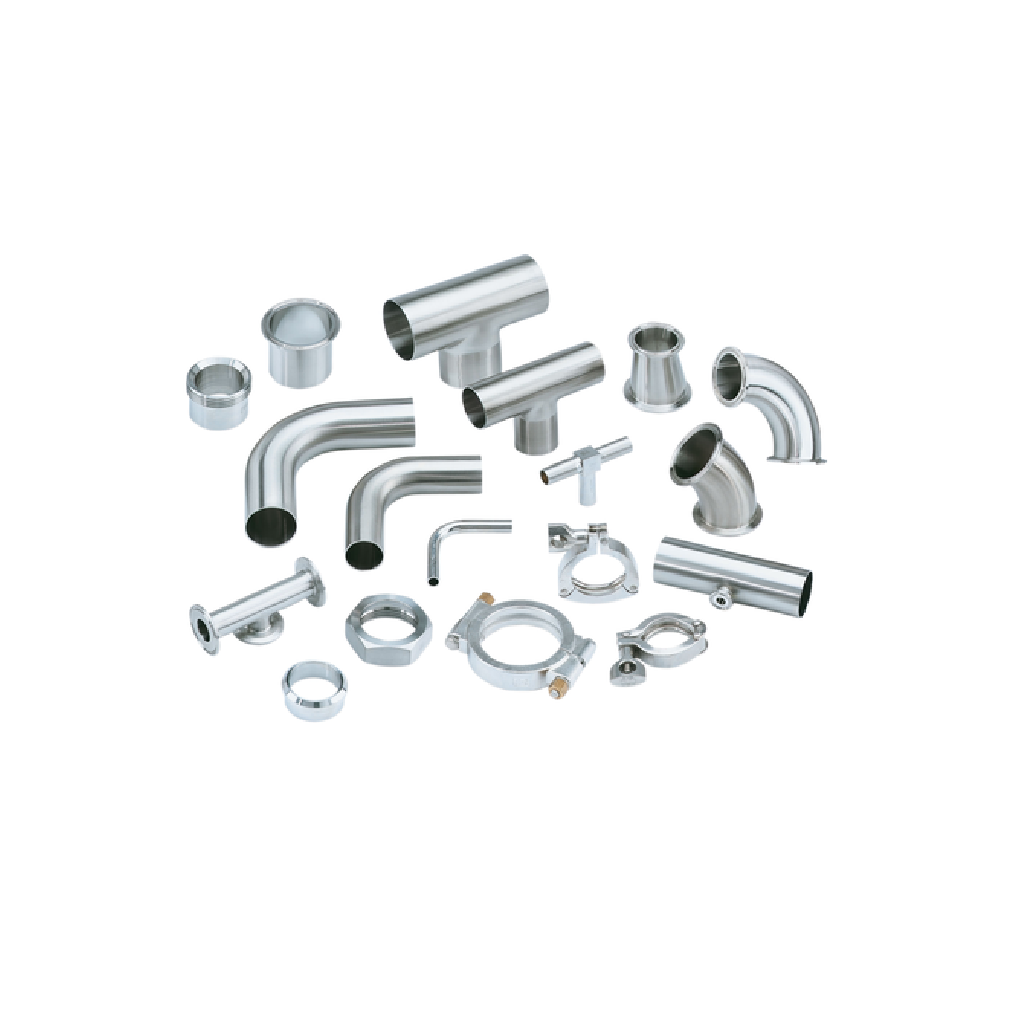

The Hygienic fittings Tri-Clover ASME 3-A help secure thorough cleaning and sanitization in sanitary and aseptic fluid transfer lines. Smooth, crevice-free, electro- or mechanically polished internal surface finishes (Ra < 0.4 – 0.8 μ) and leakproof, airtight seals minimize microbial contamination risks. They meet strict standards for hygienic and sterile processing conditions in the food, beverage, biotechnology, pharmaceutical and other industries.

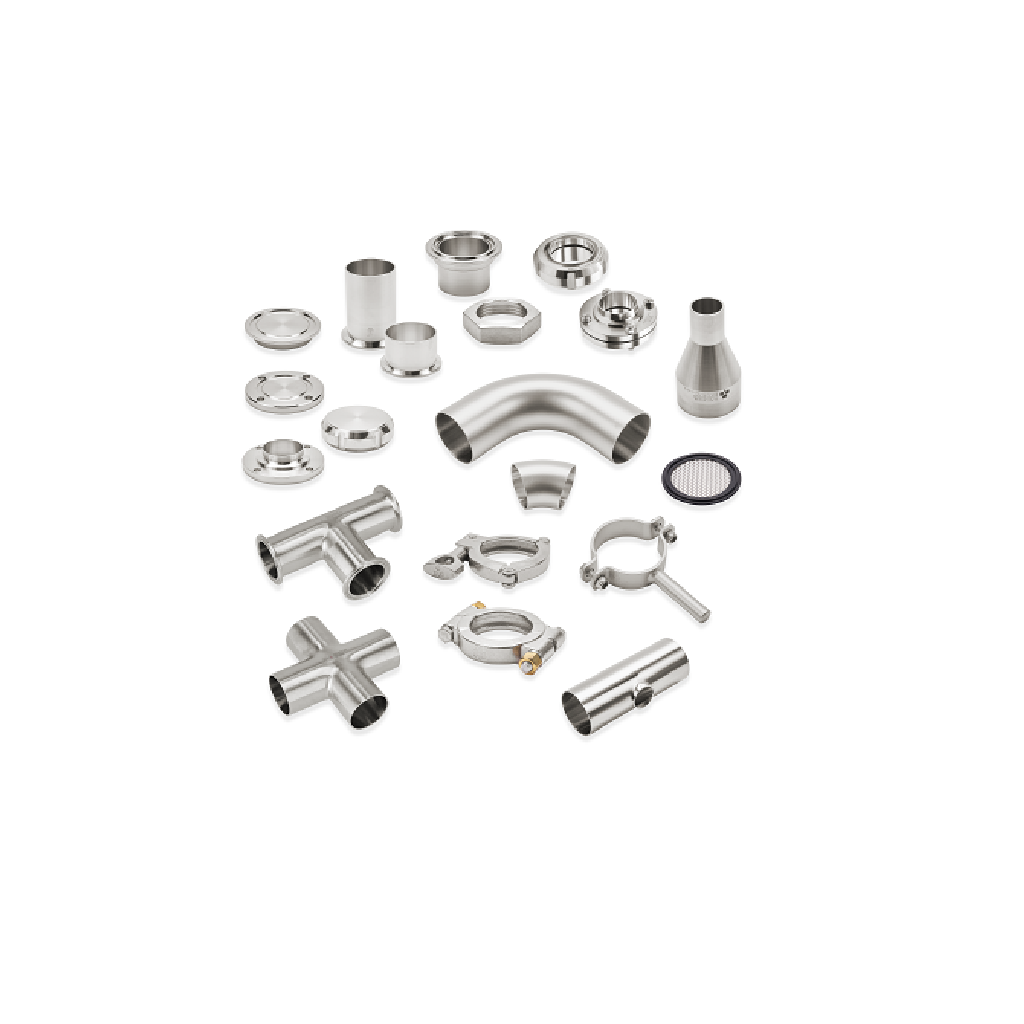

Alfa Laval offers a comprehensive range of hygienic fittings with smooth, crevice-free design, superior corrosion-resistance and secure, self-aligning joints to ensure trouble-free flow. This includes unions, clamp fittings, flanges, bends, tees, reducers and tubes. This product range provides a wide range of fittings with internal surface finishes that have a roughness average (Ra) of < 0.8 – 1.6 μ. Fittings in the hygienic range comply with ISO 2037, dimension standard.

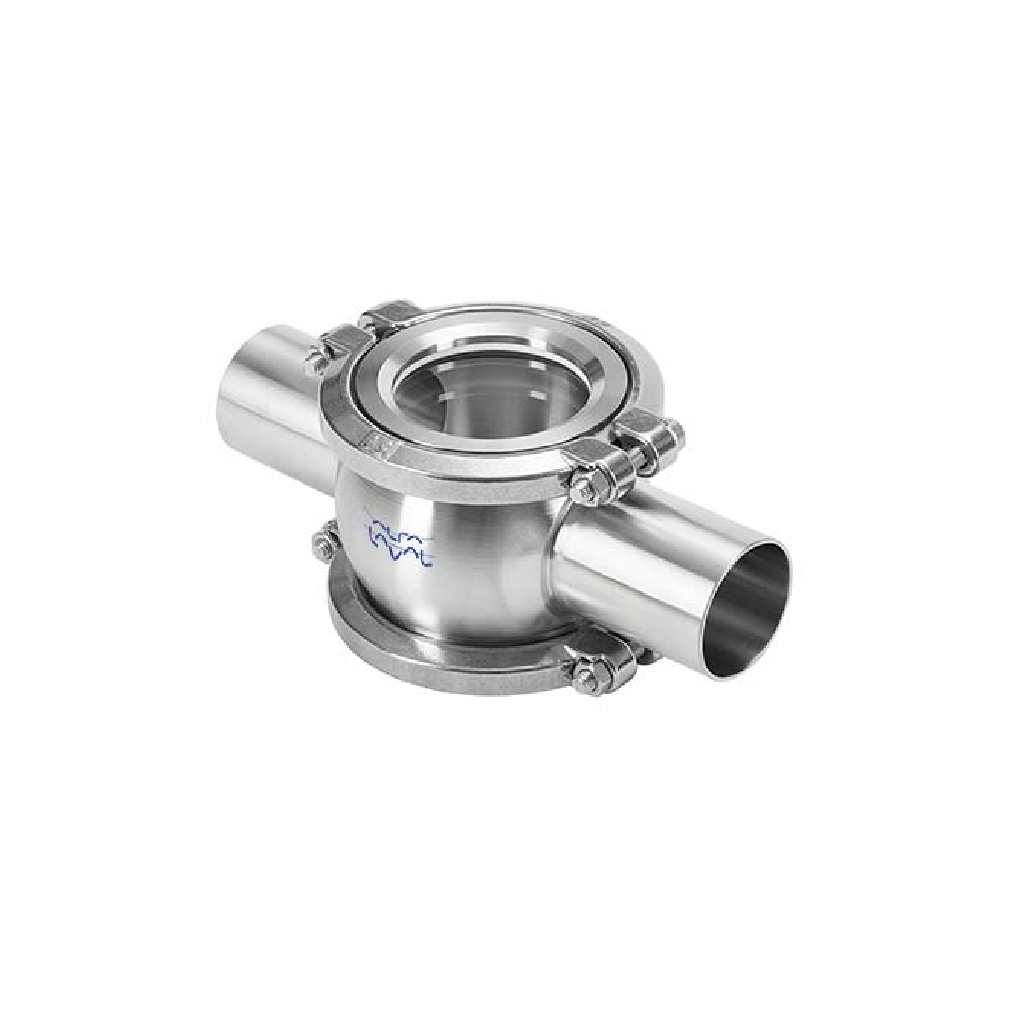

The Alfa Laval in-line instrumentation body enables you to fit any pipeline with the complete Alfa Laval instrumentation portfolio using the Alfa Laval HTC hygienic connection. The Alfa Laval hygienic in-line instrumentation body product range offers a wide range of in-line instrumentation bodies according to DIN, ISO 1127, and ASME BPE dimension standards with an internal surface finish of R_a less than 0,8 µm.

Looking for Alfa Laval hygienic tubes and fittings in Indore or elsewhere in Madhya Pradesh? Contact Element Engineers & Consultants for product enquiries, specifications, quotations, and assistance in identifying suitable solutions for your application.

Share your required tube dimensions, material grade, fitting type, connection details, quantity, and application so our team can help coordinate the appropriate product selection.
